Raspberry Pi Compute Module 4 IoT Router Carrier Board Mini With Acrylic Case

Note: This pack includes Raspberry Pi Compute Module 4 IoT Router Carrier Board Mini and Acrylic Case with Heatsink

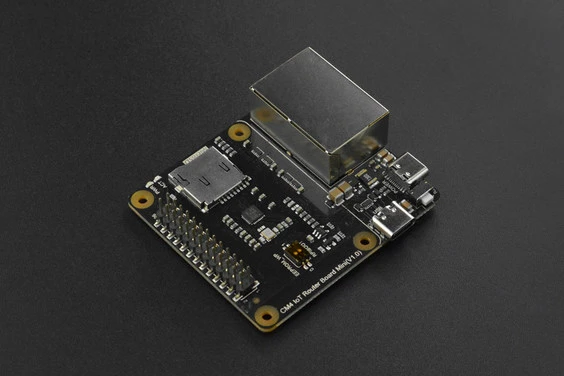

Compute Module 4 IoT Router Carrier Board Mini is an internet expansion board based on the Raspberry Pi Compute Module 4. When connecting with a gigabit network card via PCle, it brings Raspberry Pi CM4 two full-speed gigabit network ports and offers better performance, lower CPU usage, and higher stability for a long time work compared with a USB network card. Besides, with a mini size of 55 x62mm, the board still retains the characteristic GPIO pin header of Raspberry Pi, which makes it applicable for connecting other actuators, sensors, and smart cooling fan. Furthermore, there is also a USB2.0 interface that can be connected to mobile hard drives, printers, WIFI modules, LTF modules, etc.

Compute Module 4 IoT Router Carrier Board Mini now provides OpenWRT open-source router system. After a simple setup, it can be used as a router. It is also compatible with Raspberry OS, Ubuntu Server and other Raspberry Pi systems.

The powerful performance of BCM2711 4 core 1.5GHz Cortex-A72 and the rich software support in the Raspberry Pi community make this board a solid foundation for building high-performance gateways, smart routers, and home IoT platforms. It can also be connected to peripherals and used as a mini-NAS, wireless network bridge, or LTE Internet terminal.

Supporting case will be released soon.

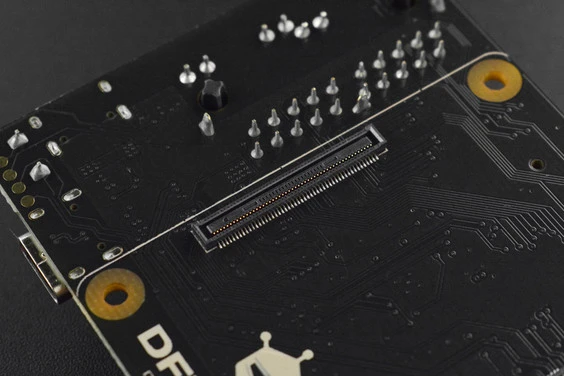

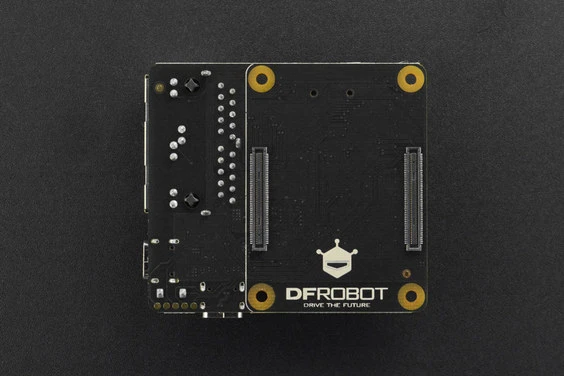

The board-socket of CM4 is fragile, please align the direction and then press it down. It is recommended not to repeatedly plug and unplug the CM4 module.

Make sure the CM4 installation direction is correct before powering up.

Connect Diagram

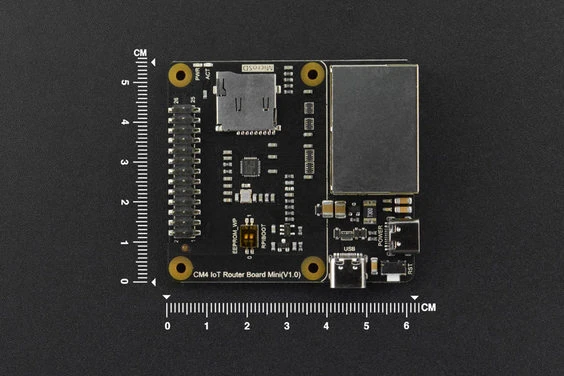

Dimension

Note:

The CM4 Compute Module is not included.

Raspberry Pi Compute Module 4 IoT Router Carrier Board Mini:

Compatible Module: Raspberry Pi Compute Module 4 series

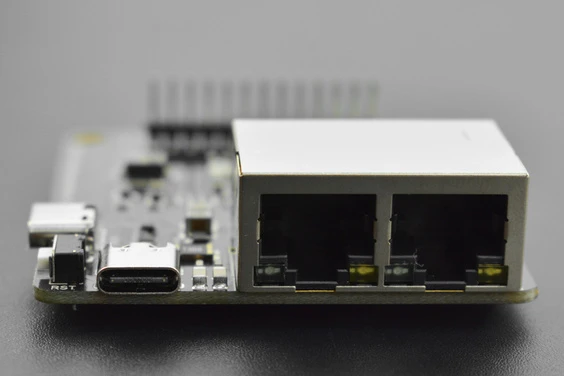

Ethernet:

        ETH1: Compute Module 4 Built-In

        ETH2: PCI Express 1000BASE-T NIC

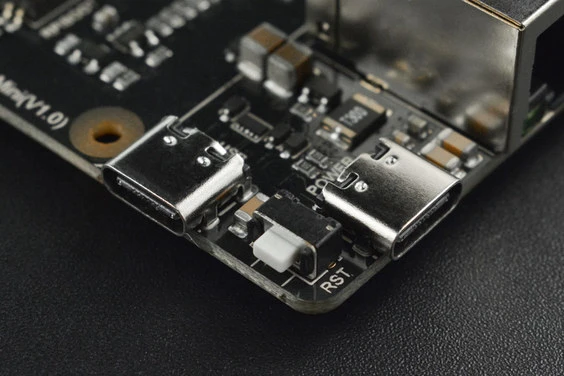

USB:

        1x USB-C: Power only

        1x USB-C: USB 2.0 High Speed

Storage Card: microSD slot (Only modules without eMMC supported)

GPIO: 26Pin GPIO compatible with Raspberry Pi

Power Supply: USB-C 5V/3A

Operating Temperature: 0℃~80℃

Dimension: 55x62mm/2.17×2.44”

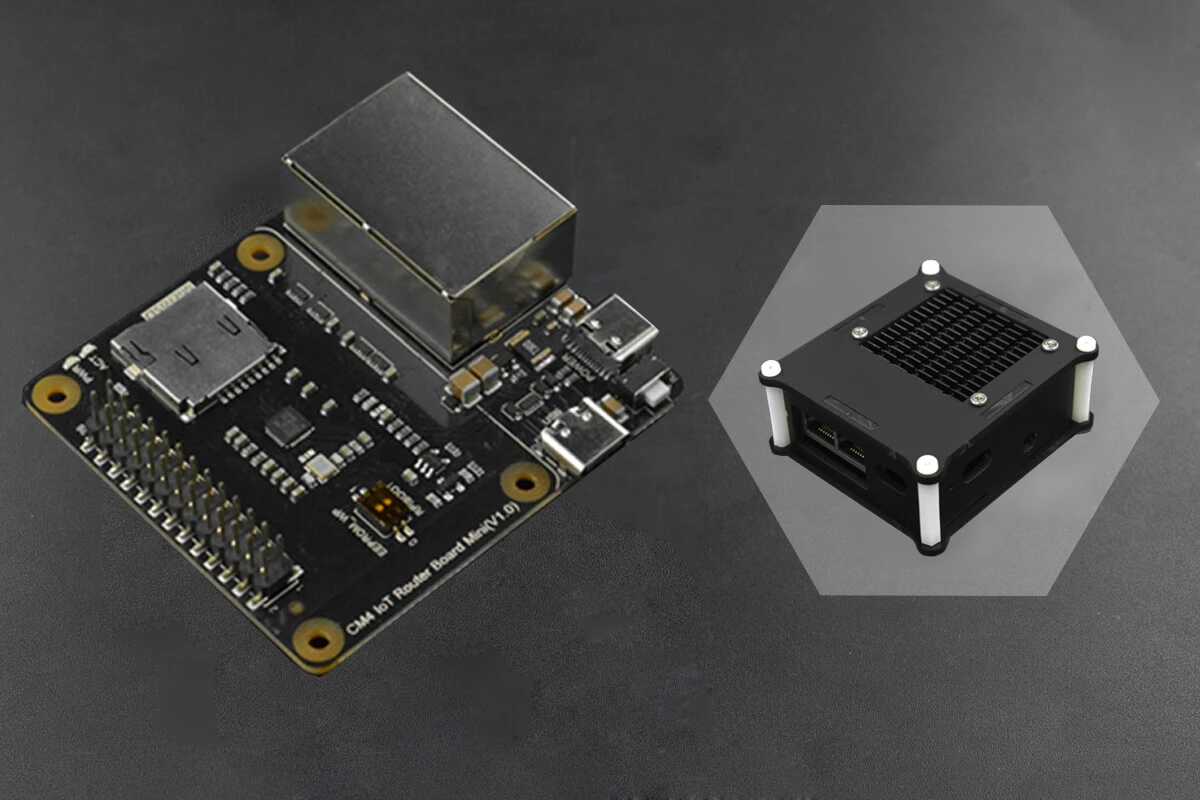

Acrylic Case with Heatsink

Size: 78x72x35mm (3.1×2.8×1.4in)

Shell Material: Acrylic

Heatsink Material: Aluminum

Compatibility: Raspberry Pi Compute Module 4 IoT Router Carrier Board Mini

Project 1. Raspberry Pi Firewall and Router with DFRobot Dual NIC

Project 2. Building a Better Raspberry Pi Router // RPi Compute Module 4, OpenWrt, DFRobot Carrier Board

Introduction: in this video, I take a step up from my Raspberry Pi 4B Router video, and I make a custom Raspberry Pi Router using a Compute Module 4 (CM4), DFRobot’s IoT Router Carrier Board Mini, and of course, OpenWrt 21.02.3.

Product wiki

Dimension Figure

V1.0 model (include case)

Compute Module 4 IoT Router Carrier Board Mini x1

Acrylic Case with Heatsink x1
