Gravity: Digital 10A Relay Module

Introducing the Gravity Digital Relay Module – the latest addition to DFRobot’s Gravity series! This module is a little different to the other relays in our store – not only is it compatible with 5V Arduino boards, but also with Raspberry Pi, BBB (BeagleBoard Black), mbed, Intel Joule, Arduino 101 and other 3.3V devices.

It is specially designed for low-voltage devices and works well under 3.3V power supplies, just like the Raspberry Pi relay board. In addition, the module has a wide range of power inputs. In our tests, once it reaches 2.8~5.5V, it can also support 1.8V devices.

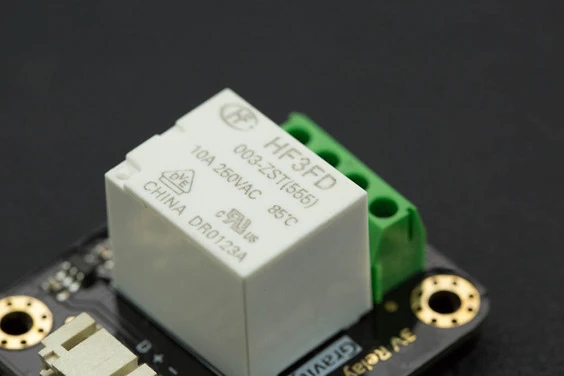

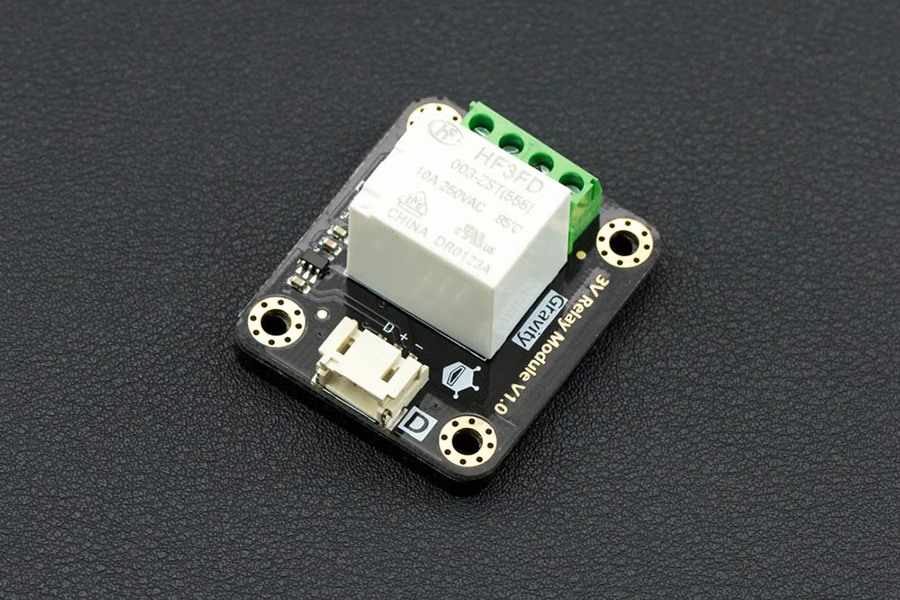

DFRobot’s Digital Relay Module uses a high quality 3V relay. It can handle up to 10A current and mechanical parts are guaranteed up to 100 million uses. An on-board indicator LED demonstrates the relay’s state. Terminals include normally open (NO) and normally closed (NC). The module uses a Gravity-3 pin interface, which requires no soldering for convenient plug and play usage.

Supports Arduino, Raspberry Pi, LattePanda etc.

2.8 ~ 5.5V – A wide-range of input voltages

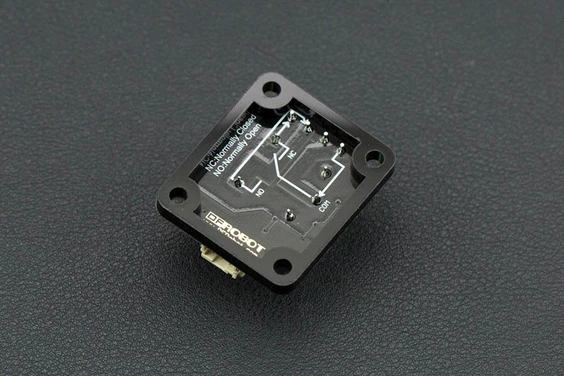

The underside of board is isolated using an acrylic plate for safety

Includes an LED Indicator

Uses a gravity-3 Pin interface for easy, plug and play usage

Operating Voltage: 2.8V ~ 5.5V

Input Signal: High Level (≥2.8V); Low Level (≤0.5V)

Max Switching Current: 10A

Max Switching Voltage: 35VAC; 30VDC

Rating Load: 10A@35VAC; 10A@28VDC

Max Switching Power: 300W

Operate Time: ≤10ms

Release Time: ≤5ms

Dimensions: 38 x 33 x 20 mm /1.5 x 1.3 x 0.81”

Mechanical Life: 1 million uses

Electrical Life: 50 thousand uses

Weight: 20g

Project 1. Hyduino – Automated Hydroponics with an Arduino
hydroponics is growing plants without the use of a traditional dirt medium by using a nutrient rich water solution. This is especially great for those people that that have limited areas in their backyard to grow in.
Hardware list:

• Arduino Mega 2560
• Peristaltic Pumps (2)
• Regular Pump
• pH Electrode Probe and Connection to Arduino

pH Up/Down Solution

• 5V Relay Modules for Arduino
• 12V Solenoid Valve
• DHT11 or DHT21 or DHT22 Humidity/Temperature Sensor
• Photosensitive Sensor for Arduino
• Breadboard
• Various Wires
• Grow Lights (mine are LED)
• Sockets for Grow Lights
• 3.2″ TFT LCD Shield + Touch Screen (usually has an SD card reader on the back of it)
• Water Level Sensor Float Switch (2)
• I2C RTC DS1307 AT24C32 Real Time Clock Module
• 9V and 12V Power Supplies
• Hydroponics Pots (I’m using 10 – 3″ pots for this)
• 1″ PVC Pipe and Fittings + Drain Pipe and Fittings

Project 2: How to Make Fingerprint Lock for Your Computer

Hardware components:

• Arduino Nano
• Fingerprint Scanner
• Digital 10A Relay Module

Product Wiki

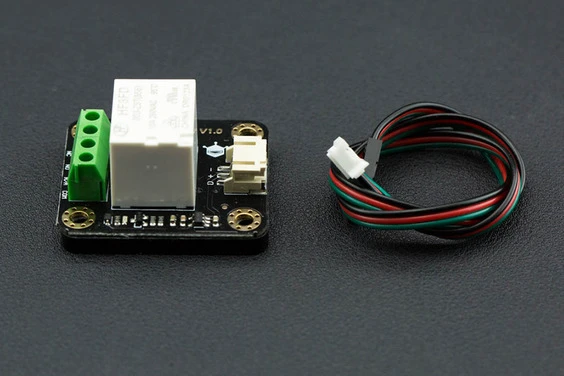

Gravity: Digital Relay Module (with Acrylic Base) x 1
