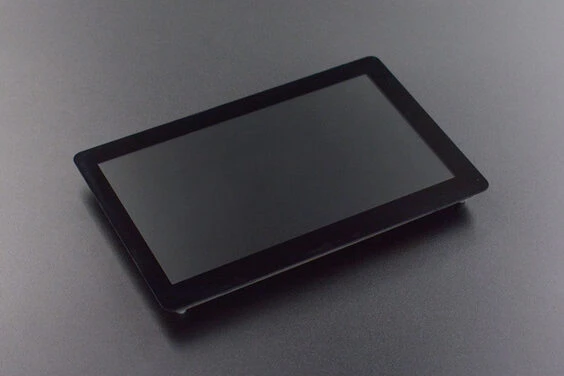

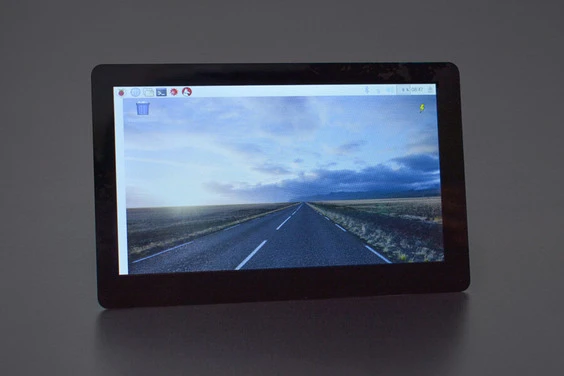

7” HDMI Display With Capacitive Touchscreen (Compatible With Raspberry Pi)

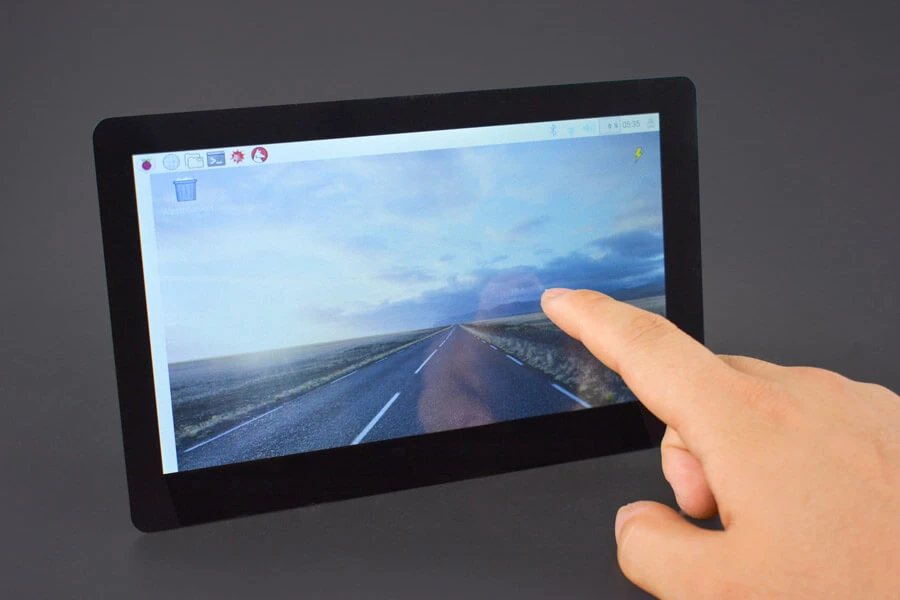

This is a 7 HDMI display with a capacitive touchscreen. It comes with a 7″ LCD screen with a capacitive touch panel overlay on it. The touch panel supports up to 5 touchpoints. And it adopts DFRobot USB free-driver technology, with no special requirement for drivers. You can use it as easily as a keyboard or mouse. It can be directly plugged into a PC for touching control. In combination with an HDMI HD screen, it can turn a large PC into a tablet immediately.

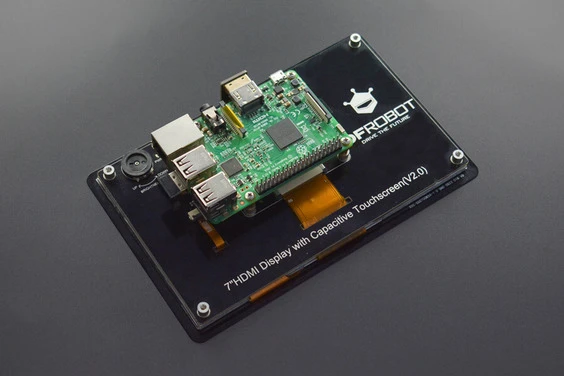

The screen supports Windows, Linux, and MAC OS. It can be used on LattePanda, Raspberry Pi, and other HDMI devices. We also make some special holes to make it compatible with the Arduino screw hole. You can mount them on the back of the display directly.

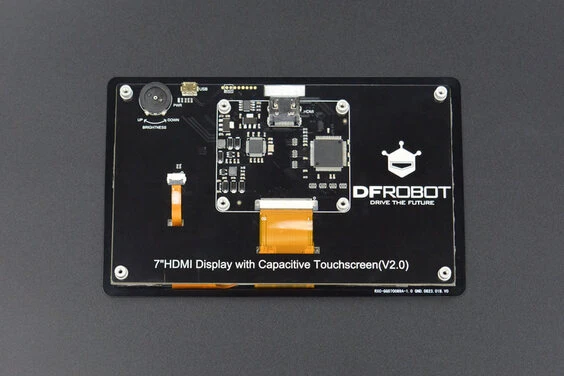

There is no need for an external power supply for the screen, it can be powered by a USB port and an HDMI port. The display also supports backlight adjustment. It is very convenient to adjust the backlight by a potentiometer on the back of the display.

Raspberry PI Computer | Tutorial | Raspberry PI 3 Model B+

 Note:

Please guarantee the external power supply current is above 1.5A@5V when it is driven by a raspberry pi. The lower current will reduce the touching sensitivity.

The package of this product only contains an HDMI adapter module for Raspberry Pi 3. If you want to use the product with Raspberry Pi 4, please click the link to buy the special cable for it

Operating Voltage: 5V

Operating Current: 160mA (with HDMI connection)

Maximum Operating Current: 1200mA

Refresh Frequency: 43Hz (not recommended 60Hz, it will not be full screen)

Screen Resolution: 1024×600

Video Interface: HDMI

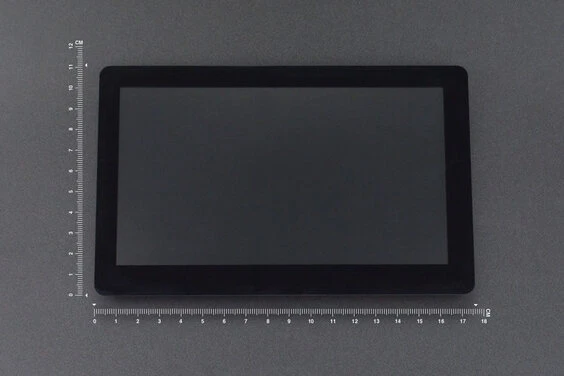

Dimensions: 183mm x 100mm/ 7.2″ x 3.93″

Mounting hole size: 3.1mm x 6mm

Weight: 328g

Project: IoT AI-driven Tree Disease Identifier w/ Edge Impulse & MMS

Introduction: After perusing recent research papers on tree disease detection methods and monitoring, I decided to create an easy-to-use and budget-friendly device to detect tree diseases with object detection in the hope of providing an advanced and accessible way to prevent contagious tree diseases.

Product wiki

LattePanda Alpha & Delta Display Selection Guide

7″ HDMI Display with Capacitive Touchscreen x1

Raspberry Pi HDMI Adapter(A TO A) x1

Raspberry Pi HDMI Adapter(A TO D) x1

M2.5*8+6 Standoffs x8

M2.5*6 DK4.9 Machine Screws x8
